Olympic Kiln - 3014GFE

Customize Order
$ 4,248.00 $ 5,310.00

Product Description

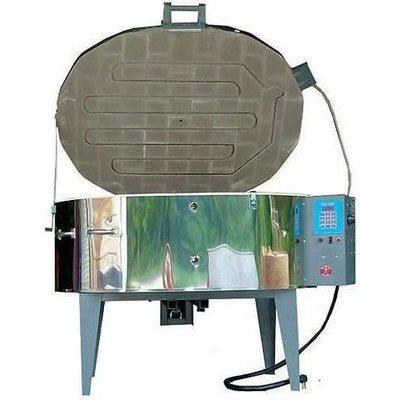

Olympic Kiln - 3014GFE



Glass firing Oval kilns are designed for large workloads and unusual shapes that do not fit in a cylindrical or square shape kiln and used for fusing and forming of glass shapes and heat-treating. 240-208 volt glass fusing models are equipped with a lid element for the fusing segment of the glass firing and body elements for the ramping up-down and annealing segments of the firing. An infinite switch controls the intensity of the heat coming from the lid element. If the switch remains in the OFF position, only the body elements will heat the kiln. If the infinite switch is turned to the High position, all elements, both body and lid, heat at the same intensity. The kiln operator may choose to lessen the intensity of lid element by turning the switch down. Models come equipped with pilot light, 18" tall metal stand or frame, stainless steel jacket, and Bartlett Instruments 3 Key electronic controller. Controller data is entered by scrolling through the up and down arrows for the desired temperature for ramp-hold programming.

Model comes with attached tall frame or tall stand, lid lift assist, peephole plugs, instruction manual, and warranty card. Two-year warranty.

Upgrade to the Genesis touchscreen controller or the 12 key digital RTC-1000 controller for more ramp-hold user programs and multiple features including delay start, preheat, skip step and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, and for viewing the current segment the firing is in. Other options include a bead door, quartz glass viewing window, lid element in quartz rods, Type S thermocouple, vent and much more!

Solid State Relay

A Solid State Relay is hands down the best investment you can make in your kiln!

The relay is what controls the power cycling of the elements in the kiln and they need to be able to withstand a ton of power as they do so. The solid state relays are incredibly efficient compared to the standard mechanical relays and are able to operate at much faster speeds. What this equates to is incredibly tight temperature control for accurate firings, longer element life, and savings on your electrical bill!

The standard mechanical relays have moving parts which cause wear and tear over the years and will eventually need to be replaced; however with a solid state relay it's likely to last the entire life of the kiln! You will save money and time by never needing to worry about this in the future!

Controller Selection

Olympic has close relationships with the manufacturers of a variety of digital controllers. This means you will have nothing but the best the best in terms of performance and accuracy in your firings.

With a selection of multiple controllers available - you can choose exactly what fits your needs.

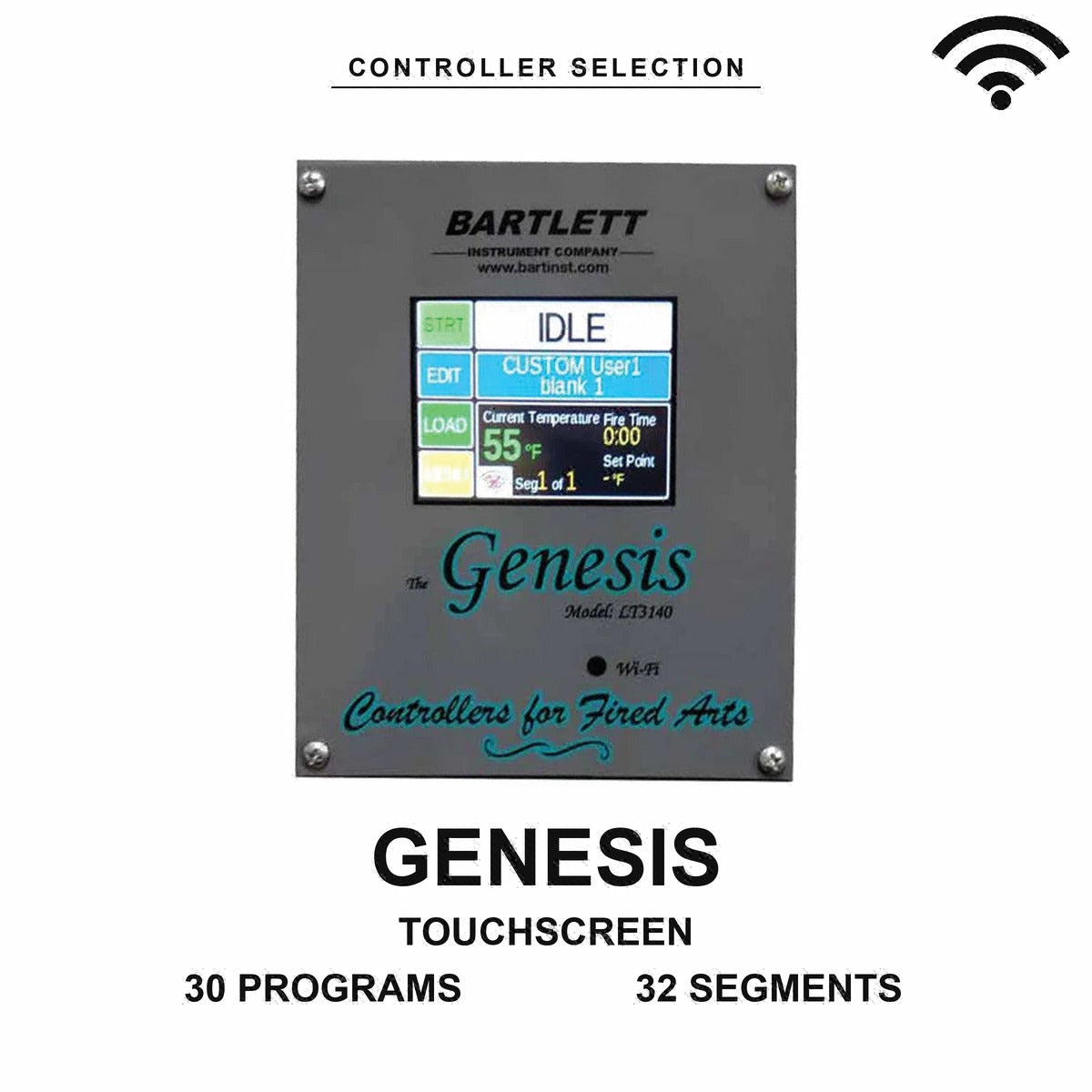

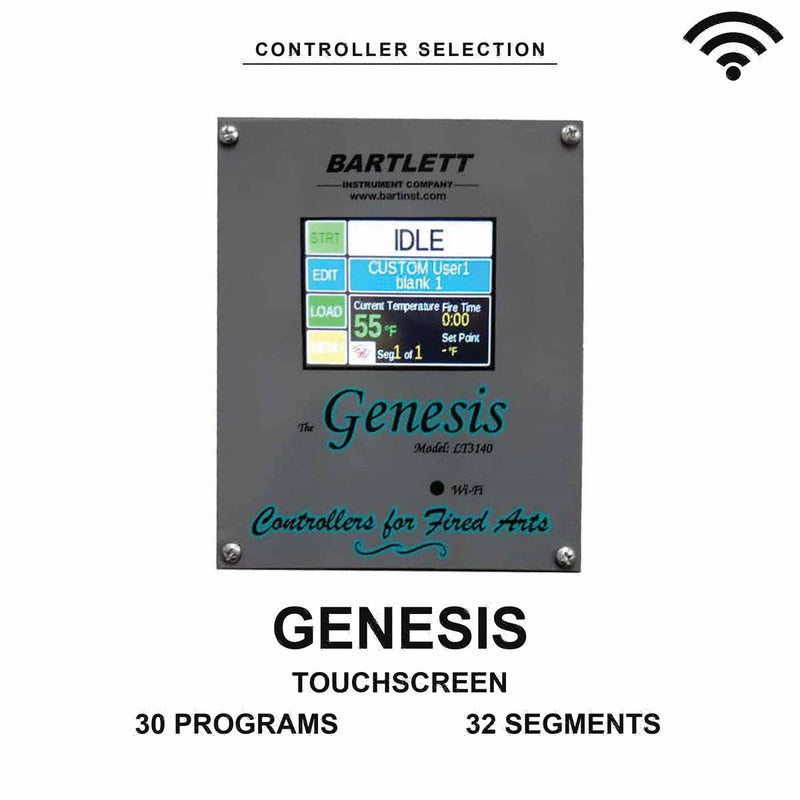

Genesis by Bartlett Instruments

The Genesis is a touch screen option which has extended functionality over traditional button controllers!Genesis Controller

The Genesis has the ability to store up to 12 different programs - with up to 32 segments per program each! You'll have no trouble adding segments, skipping, or adding temperature along the way.

This is a great choice for a controller if you want the features of a smart controller, but want the ease of straightforward programming and use.

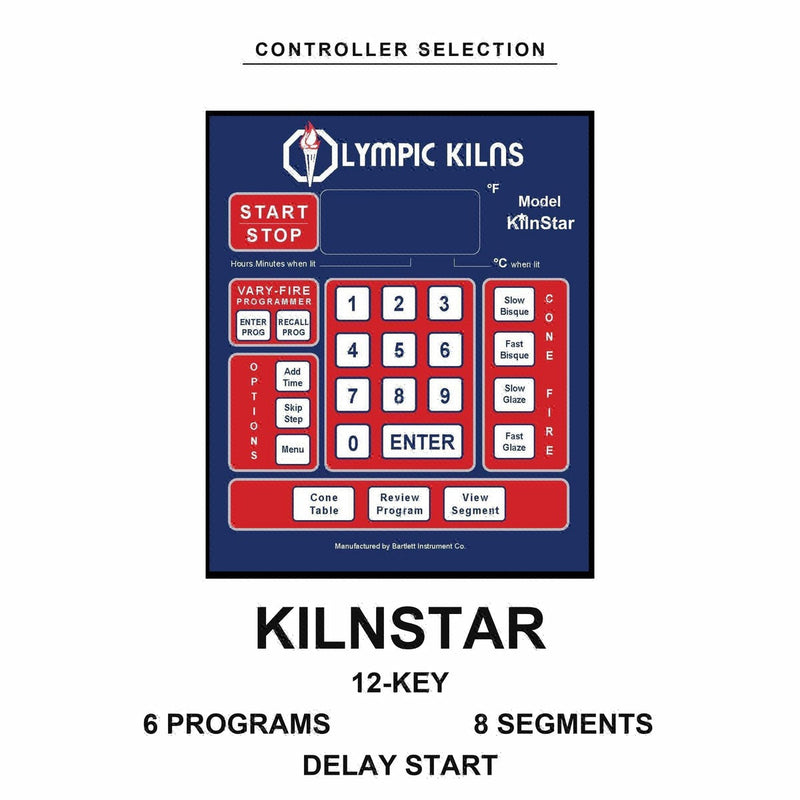

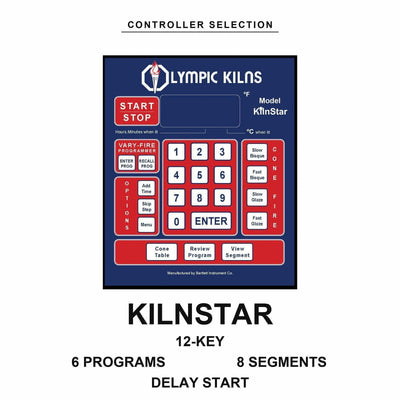

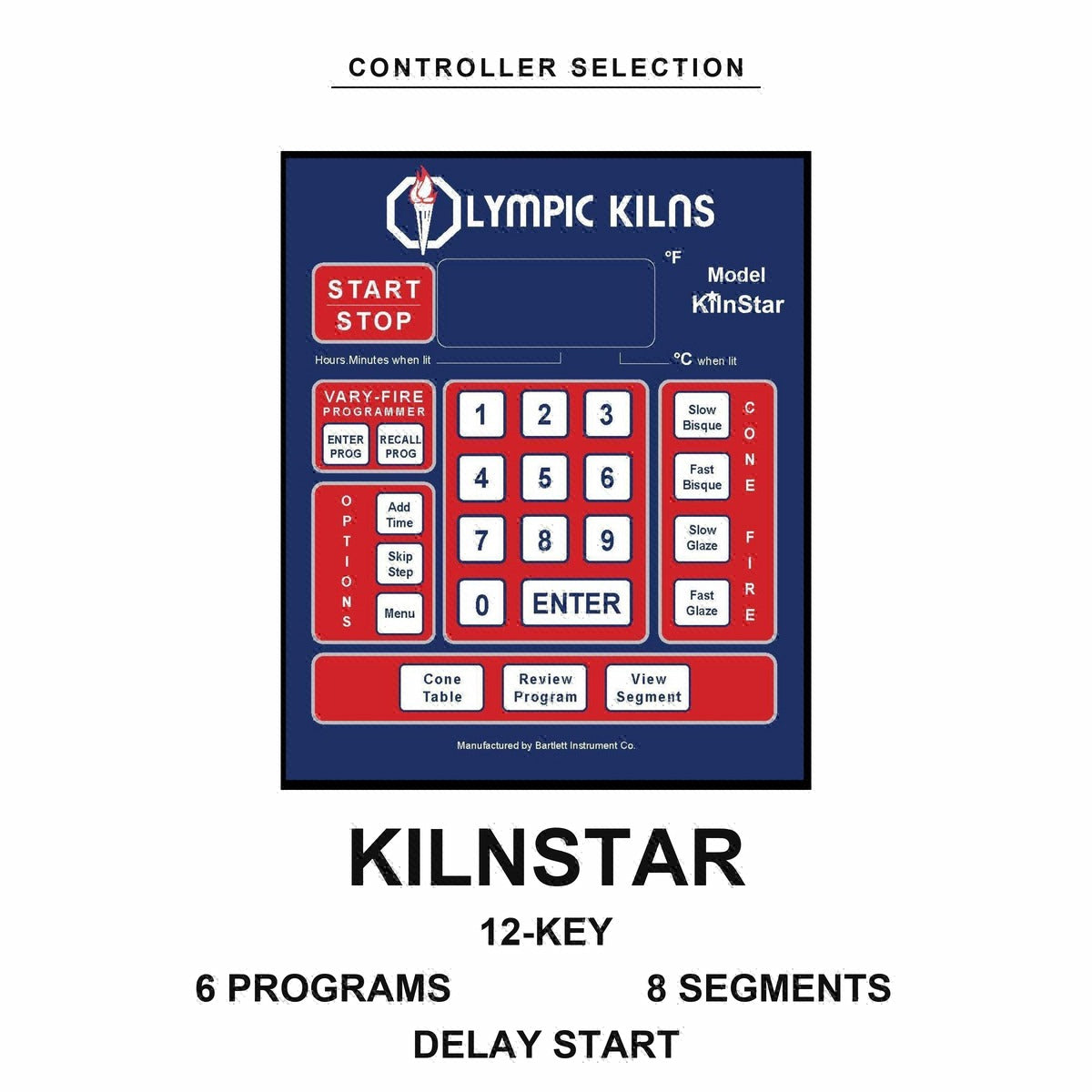

KilnStar by Bartlett Instruments

With an intuitive keypad and versatile features, the Bartlett KilnStar Controller allows operators to create up to 6 custom firing programs, each with up to 8 segments, or combine them for 16-segment programs for more complex firings!

Bartlett KilnStar Controller

Need to adjust on-the-go? The KilnStar makes it easy to add time, skip segments, or adjust the final temperature mid-firing. Preheat is a breeze too, with the option to hold the kiln at 200°F for drying ware before moving into the firing cycle.

Cone Fire mode simplifies ceramic firings, while Vary-Fire offers full control over firing profiles, perfect for glass and jewelry. Whether you're firing ceramics, glass, or custom projects, the KilnStar is a flexible and powerful tool for any kiln operator.

Power Interrupt Switch / Automatic Lid Shutoff

The power interrupt switch is a useful safety feature which removes power from the heating elements of your kiln once it is opened, and reapplies the power once the lid has been closed.Power Interrupt Safety Switch

If you believe you'd ever like to open the kiln during firing, the power interrupt switch is a highly recommended addition to your new purchase.

Furniture Kit

Furniture Kits are necessary accessories for any kiln owner as firing directly on the kiln floor is not only bad for the kiln, but your pieces as well. In addition to this, they're also useful! A furniture kit will allow you to stack multiple shelves on top of one another in order to maximize the useable space when firing smaller pieces.

If you have one that will fit this kiln size already, then you're in luck! But if not, you'll want to ensure you add this to your order as well.

Furniture Kit includes:

  • 2x 30" oval shelves
  • 10x 2" small square posts
  • 10x 5" small square posts
  • 10x 7" small square posts
  • 1x 1 lb bag kiln wash
  • 1x 10 sq. ft. ceramic paper

Kiln furniture can be special ordered separately, but if done so the cost is ~10-20% higher and will incur a separate shipping charge. It's best to include this on your initial order of the kiln.

* Received shelves may contain surface imperfections such as scratches, discoloration or rough edge. These possible imperfections are understood and accepted by the buyer.

Bead Door

The Bead Door is a 2" x 4" opening with an insulated door covering. This is a very useful option when you need quick and easy access into the interior of your kiln, without opening the main door and releasing the kiln's heat.

* The Bead Door is not compatible with the slotted brick door.

Flash Arm

The Flash Arm is a metal arm on kiln that is notched for 2" and 4" openings for the lid venting.

Emergency Parts Kit

The Emergency Parts Kit is an excellent resource to have on hand for when your kiln eventually needs a little maintenance after all your projects! Ensure you never need to slow down and can get right back to work.

This kit includes:

  • 4 Elements
  • High Temp Connectors
  • Element Pins, Transformer
  • Fuse
  • Pint of Mortar
  • Thermocouple
  • 3 Relays
  • Crimping Tool
  • Lead Wires with Slip-on Connectors.

Product Specifications

Model 3014GFE
Max Temperature 1700 °F
Loading Type Top-loading
Inside Dimensions 42" x 30" x 13.5"
Exterior Dimensions 55" x 53" x 43"
Volume (Cu. Ft.) 8.25

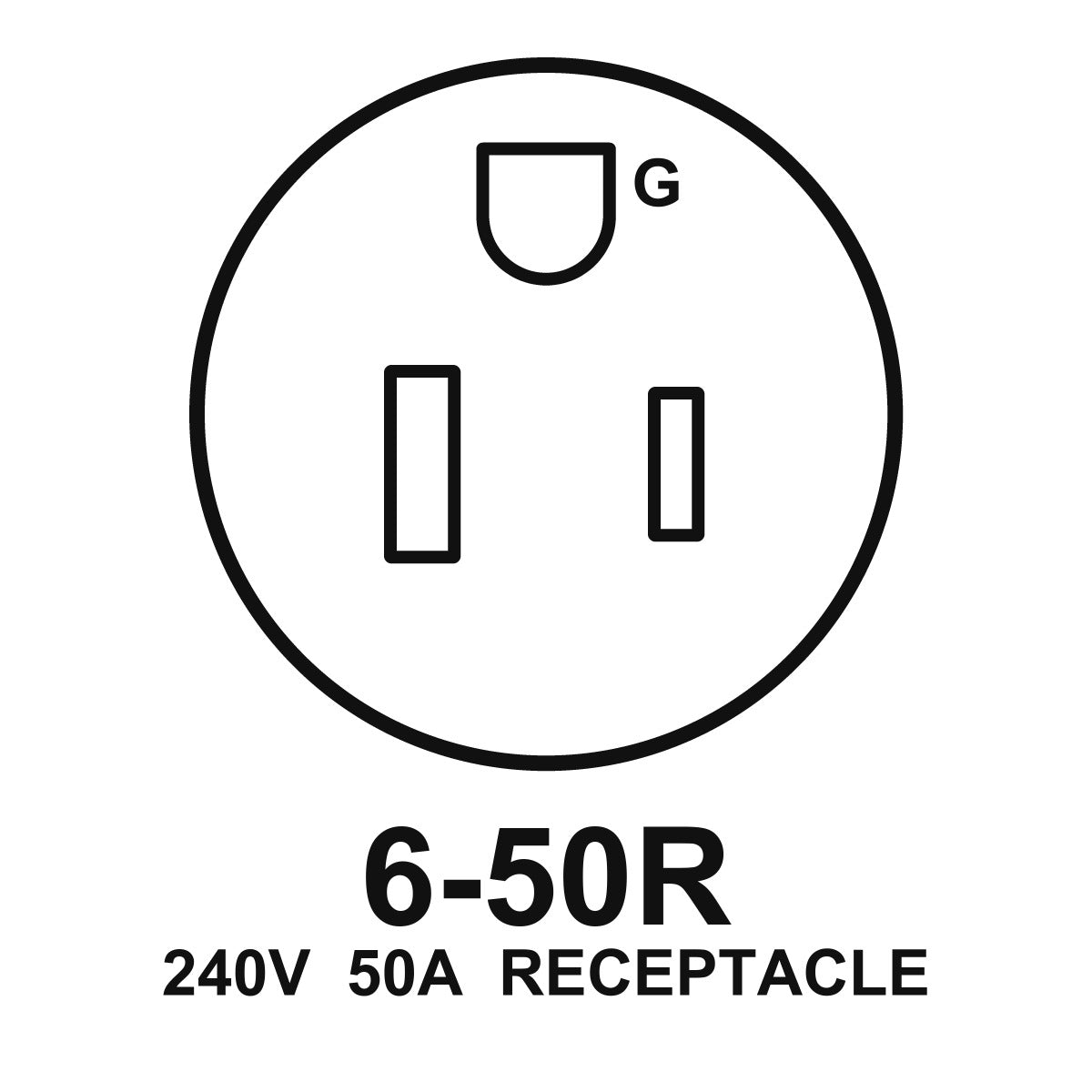

Power Plug Type NEMA 6-50
Voltage 240
Watts 11280
Amps 47
Breaker Size (amps) 60
Shipping Weight (lbs.) 530
Shipping Lead Time Made To Order - Please Inquire
Warranty 2 Year
* Voltage, Watts, Amps, Max Temperature, & Power Receptacle are all based on the standard model. A change in voltage, wiring phase, or addition of certain features such as additional elements may cause a deviation from these specifications.
* Image may differ from product received depending on product options chosen.

Price Guarantee

At Soul Ceramics, we want our customers to know they are getting the best prices online. When you see the blue "Lowest Price Guarantee" words on our website, we are guaranteeing that we have the lowest price anywhere on the internet. In fact, if you find another online store that offers a lower price then us within 30 days of your purchase date please let us know and we will hand you the difference - in cash.  We want you to shop confidently knowing that you are getting the absolute best price on your kiln or wheel.

To request your partial refund, e-mail us a link to the same product on our competitor's website within 30 days from the date of your order and we will process the credit accordingly.

Our Lowest Price Guarantee has some restrictions:

  • You must purchase the item from our website before requesting your partial refund
  • Special promotion offers are not eligible
  • The competitor must be an online store only
  • The website can not be a discounter or auction website, such as eBay
  • The competitor must be an Authorized Retailer for the product
  • The price on the competitor's website must include all shipping and processing fees
  • The model must be "like-for-like" (eg: In-stock vs. In-stock or Made-to-order vs. Made-to-order)
  • The manufacturer must be either Evenheat Kiln, Jen-Ken Kilns, or Paragon Industries
Soul Ceramics reserves the right to refuse payment for any products or offers that do not meet the required definition of a fair market price.

    Shipping & Returns

    At Soul Ceramics, we know how annoying it can be when you are hit with hidden costs and fees when you purchase items online. That's why we offer FREE SHIPPING* on all standard orders through Soul Ceramics.

    We even cover extra costs such as lift gate service, so the price you see is the price you pay!

    For the full details on this offer and our detailed shipping and returns policies, click here.

    * Non standard orders include shipments outside of our standard shipping range, and orders that do not include a kiln or pottery wheel in the same shipment. Soul Ceramics reserves the right to inform you of shipping costs before orders are finalized.

    Warranty

    Olympic warranty highlights

    • Two years on most kilns; one year on cone 10 kilns and on kilns equipped with a Kiln Sitter and safety timer.
    • Thermocouples and kiln furniture are not covered.
    • Register your kiln online with Olympic after purchase.
    • Contact Soul Ceramics first. If the issue is not resolved, notify Olympic in writing with the date, place and proof of purchase.
    • You ship the parts Olympic requests at your cost; Olympic repairs, replaces or refunds within 30 days and ships back at its cost. You reinstall the parts yourself.
    • Not covered: overfiring, exceeding the cone or temperature rating, reduction or salt firing, improper installation or voltage, and altered kilns.

    Extended warranty (Clyde)

    • Optional extended protection from Clyde can be added to eligible products at checkout, on top of the manufacturer's warranty.
    • Clyde plans cover the core product only. Add-on options such as controllers, furniture kits, stands, blade fixtures and vents are not included.
    • Claims under a Clyde plan are filed with Clyde, not with the manufacturer. Keep your Clyde confirmation email with your order confirmation.

    In every case

    • Keep your order confirmation. It is your proof of purchase date and every manufacturer asks for it.
    • Report a problem as soon as you notice it. Several manufacturers require notice within 10 to 15 days of discovering a defect.
    • Contact Soul Ceramics first. We are the authorized dealer for everything we sell and we coordinate claims with the manufacturer on your behalf.
    • Do not discard any failed parts until the claim is resolved. Manufacturers may ask for them back for inspection.
